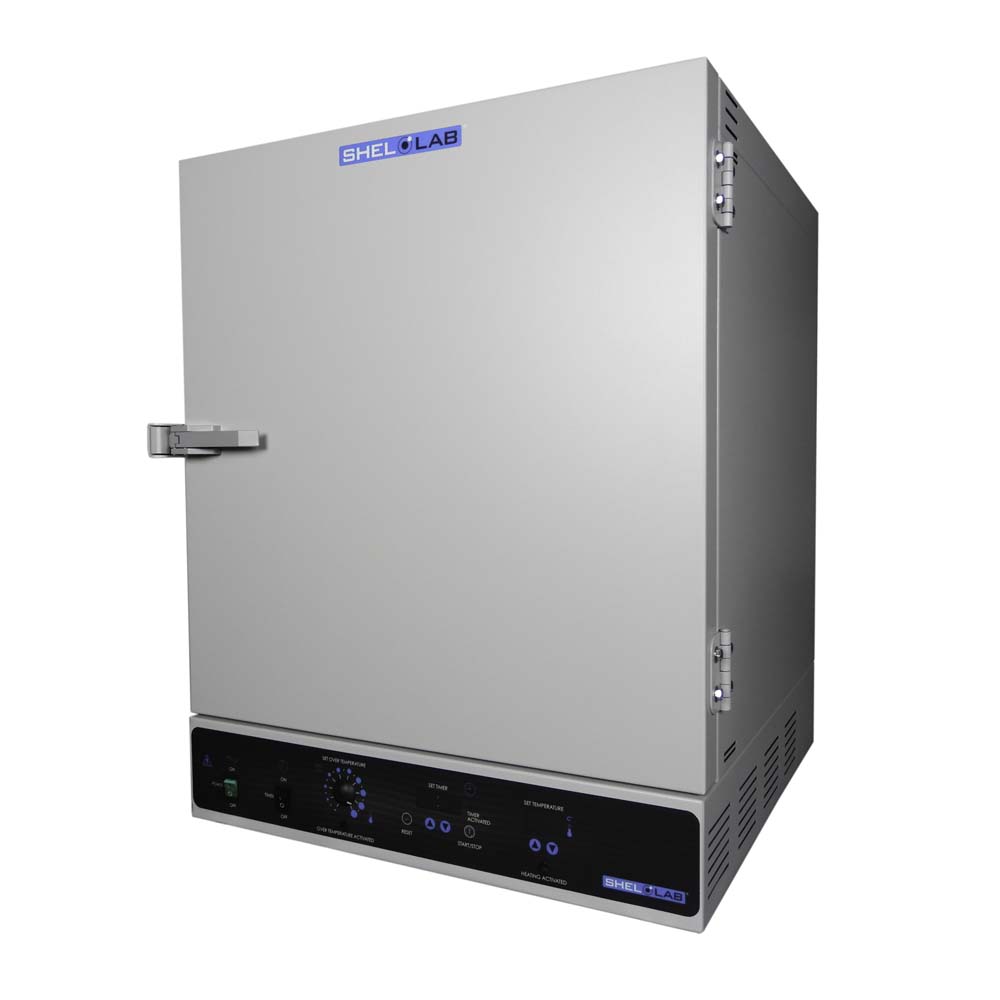

SGO3 Gravity Oven, 3 cubic feet (85 L)

Get a Quotation
This unit has triple wall construction and easy to read microprocessor controls. Adjust the air exhaust from the chamber without putting your fingers near the heat source. Even at temperatures of 306°C, the outer skin of this unit meets all CE requirements, meaning your application will stay hot but your workspace will not.

This gravity convection oven provides a degree of uniformity comparable to most forced air ovens on the market. The 99 min 59 hr digital timer has an independent control so its use is optional. Once the timer expires the power is cut to only the heating elements.

These units include:


  • Microprocessor Controls
  • Superb Temperature Control
  • Cool Touch Damper
  • Digital Timer to 99hr and 59 min
  • CE Approved
  • 3 Shelves
  • 24 Month Limited Warranty
Ask us about our Extended Warranties*!
*US Domestic Only

Model

SGO3

Part ID

SLG322


Exterior Dimensions (W × D × H)

26.9 × 28.6 × 34
(684 mm × 727 mm × 840 mm)

Interior Dimensions (W × D × H)

16.5 × 19.5 × 16.2
(419.0 mm × 495.0 mm × 412.0 mm)

Volume

3.0 cu.ft. (85.0 L)

Shelf Dimensions (W × D)

16.1 × 18.8 (409 mm × 478 mm)

Unit Weight

170.5 lbs (77.3 kg)


Interior Metal

430 SST

Exterior Metal

Painted Cold Roll Steel


Operating Temperature Range

Amb +20 - 306C

Temperature Uniformity - Midrange

3.5 °C

Temperature Stability - Midrange

0.3 °C


Controller Type

Digital

Display Resolution

0.1 °C


Power Voltage , Frequency and Current

110-120 VAC, 50/60 Hz, 14.0 Amps


Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1, CE

SLG322 110/120V Manual

SLG322 220/240V Manual

SLG322 Brochure
